Online support, Engineers available to service machinery overseas
Key Selling Points:
Easy to Operate
New Product 2020
Machinery Test Report:
Warranty of core components:
PLC, Bearing, Engine
vacuum pre-sealing machine
lithium battery lab machine
Cell sealing width:
Adapt aliminium-laminated film thickness:
Electric cabinet size:
Sealing head parallel:
10000 Set/Sets per Month
Packaging & Delivery
standard export package for battery pre-sealing machine
pre-vaccum sealing machine as lithium pouch cell machine
1. vacuum sealing machine function
1)It mainly used for the first vacuum sealing of punch (soft-pack)lithium cell after injected.
1.2) vacuum sealing machine working principle:
This equipment is used the tilt(flip type)to form a closed cavity,then pump the air in the cavity to form -90KP of in a negative pressure state,so that make the air within batteries core excluded.Platen of the upper chamber use the cylinder pressing materials,and then trough sealing head using the heat conduction effect acting on a lithium battery packaging material(aluminium-laminated film),and heated close to the molten state softened and fused together.
2. vacuum sealing machine Basic Paramter
Adapt aliminium-laminated film thickness
Cell sealing width
Adapt cell spec
Max. 500L×450W×500H MM
Electric cabinet size
Sealing head parallel
Sealing head length
3. vacuum sealing machine consume and configuration list
Air source pipe diameter
Input air source
Vacuum pipe outside diameter
4. vacuum sealing machine characteristic
4.1)can suitable for different specifications of battery,easily to adjust,only do the speed
regulation(or change)clamp and adjust(or change)the related sealing head ok.
4.2)there are battery pressing platen within the upper cabinet,to press the battery tightly and make the products better effrect.
4.3)the sealing-head is made from copper materials, heat transfer effect is good save power consumption, improve work efficiency.
4.4)the head temperature can set through the thermostat panel button control, the current value of the temperature and the set point can be through its LCD screen display, intuitive and easy operation.

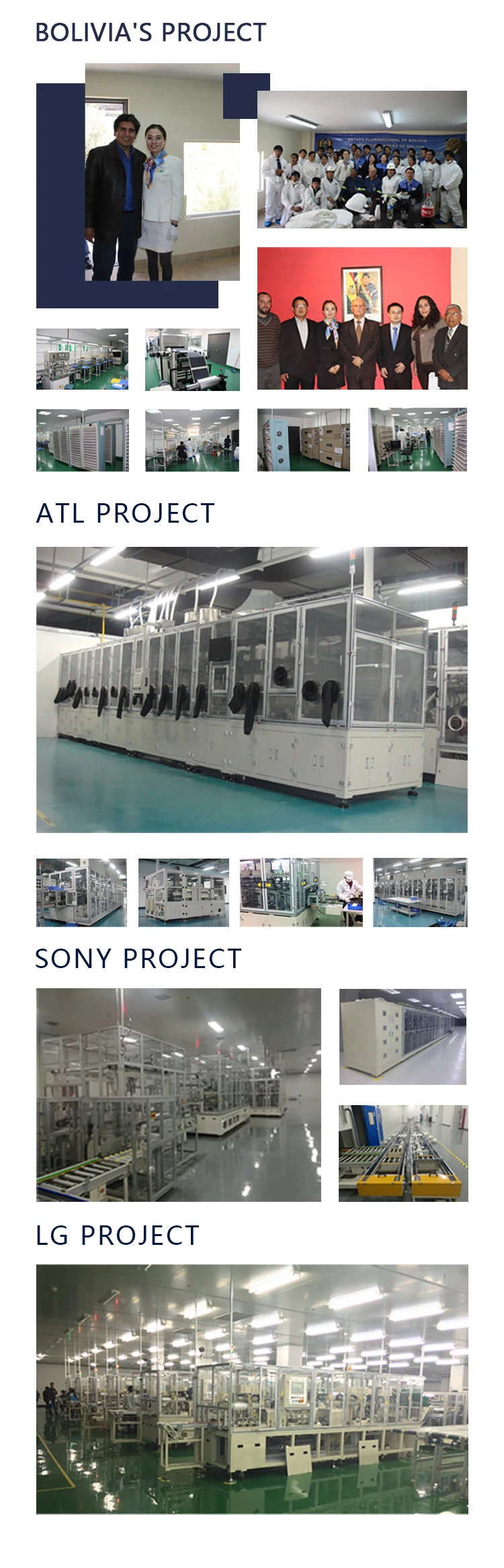

we have sucesseful established a lithium battery production line with Bolivia government company which is highly admired by Bolivia president.
And, our next project will be cooperate with Indonesia government for aluminum case cell.
